Power Loss Procedure

This should be done whenever there is a loss of power (most critical if the system is on when power is lost)

After Power Goes Out

  1. If on, turn key off below soundboard
  2. If on, turn key off behind lighting computer
  3. Go to breaker panel in amp closet (closet behind HVAC room off stage, see picture below)
  4. Turn off labeled breakers (#2, 3, 6, 8, 9, 10, 11, 13, 16, 20, 21, 23, 25, 26, 27, 29, 30, 31, 33, 35, 37, 38, 39, 40, 41)

When Power Comes Back On

  1. Go to breaker panel in amp closet (closet behind HVAC room off stage, see picture below)
  2. Turn on labeled breakers waiting 3 seconds between switching each one (#2, 3, 6, 8, 9, 10, 11, 13, 16, 20, 21, 23, 25, 26, 27, 29, 30, 31, 33, 35, 37, 38, 39, 40, 41)
  3. If system is needed turn things back on as normal

Inform Zachary if any issues noticed from power loss

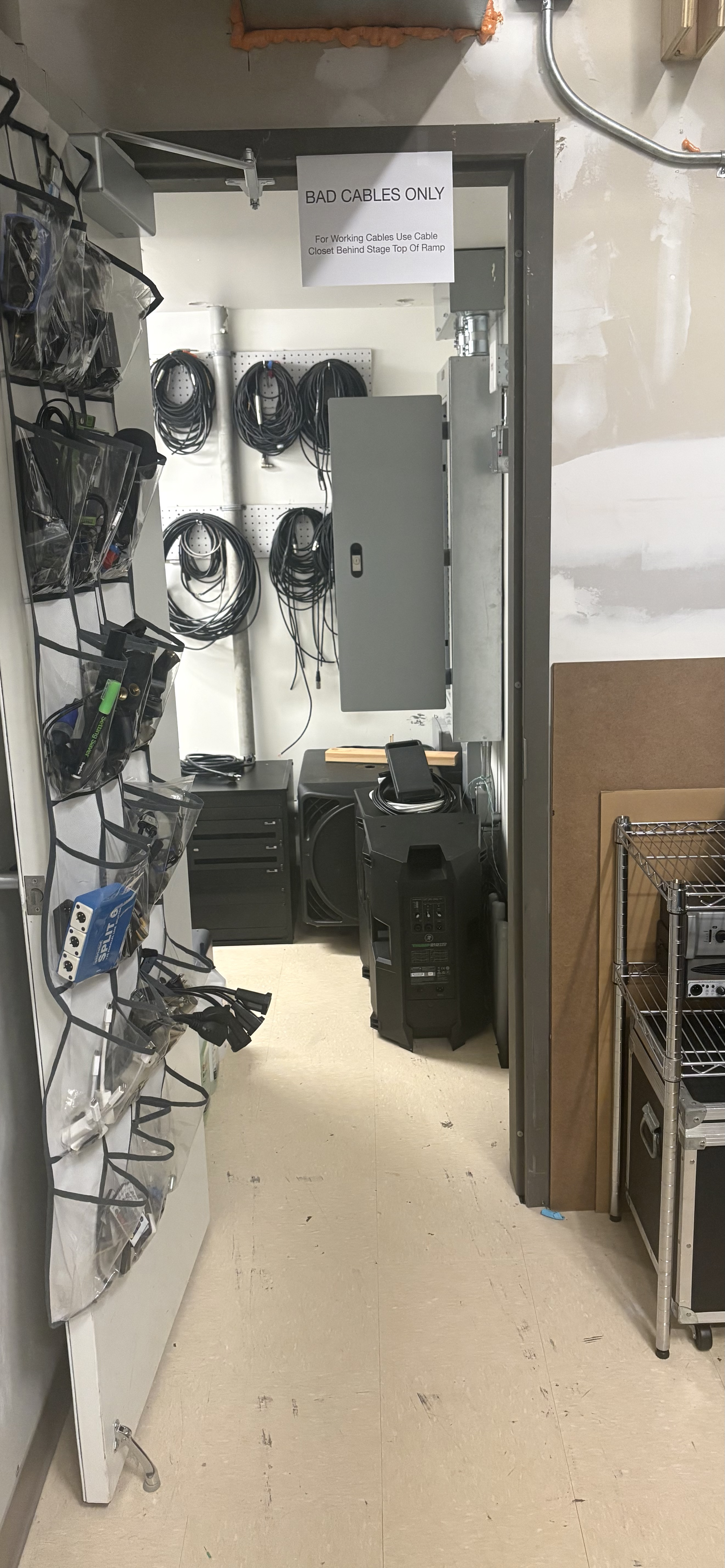

Amp Room

Amp Room

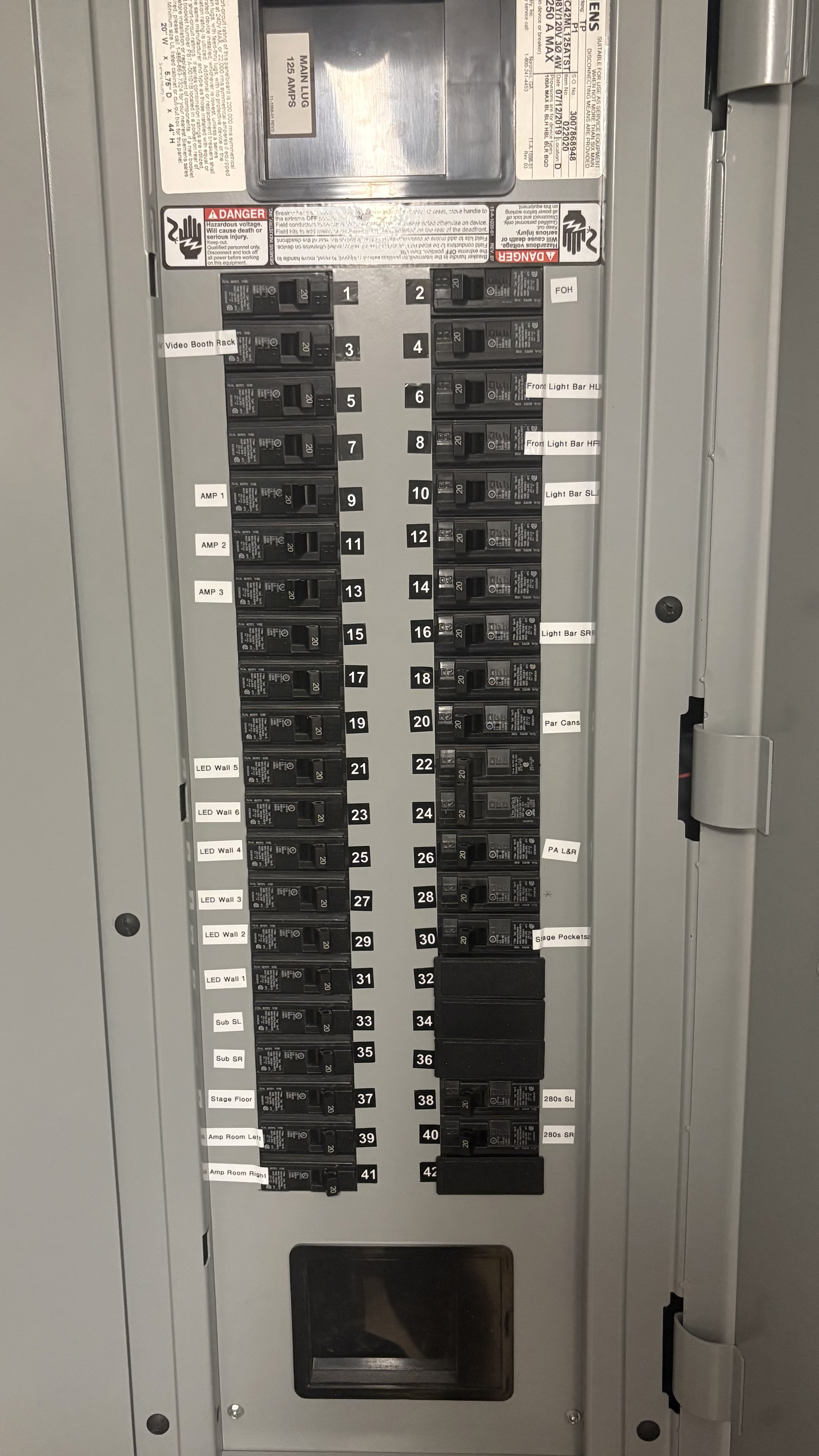

Breaker Box

Breaker Box
